How Much Weight Can a Crane Lift

How Much Weight Can a Crane Lift

Meta Description: Discover how much weight a crane can lift with factors like boom lengths and load charts. Learn about crane types and capacities for safe lifting operations

This article comprehensively overviews factors determining a crane’s exact lifting capacity. It examines how specifications such as load weight, lift height, distance, and boom angle can influence a crane’s rated ability.

The effects of these critical variables are demonstrated through examples of common crane types and their applications.

Key Takeaways

• A crane’s lifting capacity depends on factors like load weight, lift height, boom angle, and distance from the crane.
• Common crane types, including mobile, tower, and boom trucks, have essential lifting capacities ranging from 10 to 175 tonnes, depending on their specifications.
• Understanding a crane’s load chart is essential, as it specifies the equipment’s rated lifting ability under different load scenarios based on critical variables.
• Carefully considering all capacity-influencing factors and referring to load charts is essential to ensure safe lifting operations within a crane’s configured maximum.

How Much Weight Can a Crane Lift?

The amount of weight a crane can lift depends on its type and size. Cranes can range from small mobile cranes that lift a few tons to large tower cranes that lift hundreds of tons.

For example, a small mobile crane might lift around 20 tons, while a large tower crane could lift over 20 tons. The lifting capacity of a specific crane should be listed in its specifications, and it’s important to adhere to these limits for safety reasons.

Crane Types and Their Basic Lifting Capacities

Cranes come in various types, each suited for different applications and load capacities. It’s important to understand the lifting range of common crane varieties to select the right equipment for any job site or project.

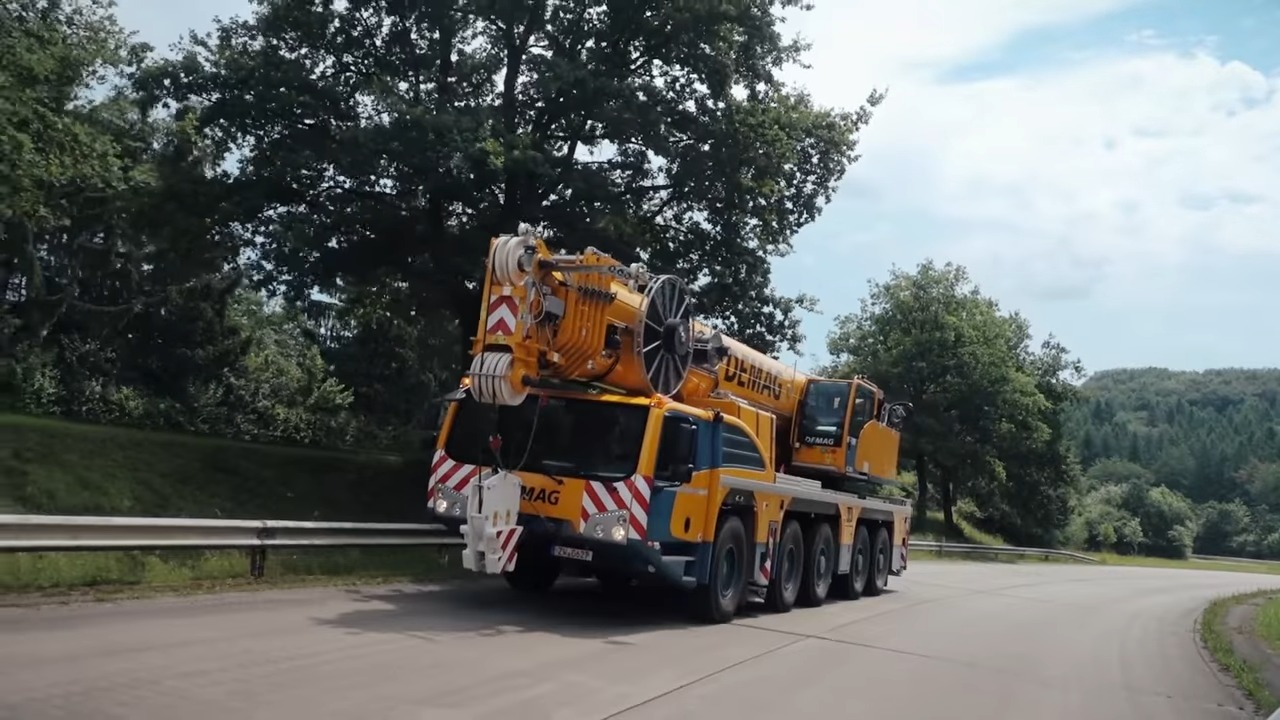

1. Mobile Cranes – 10 to 60 tonnes

Mobile cranes are frequently used on job sites due to their versatility and ability to lift loads weighing 10 to 60 tonnes, depending on the specific crane model. Their lifting capacities vary significantly depending on maximum boom length, configuration, job site conditions like uneven ground, and weather.

Mobile cranes are suitable for many applications requiring lifting, loading, and positioning of heavy objects or equipment where the crane can be transported between locations. Operators must consider load charts specifying the effect of boom angle, horizontal distance, and total load weight to ensure safe operation within the mobile crane’s rated capacity.

2. Tower Cranes – 20 tonnes

Tower cranes are commonly used in construction projects that require lifting structural components and materials over an extended period. Depending on boom length and load radius, the average lifting capacity is around 20 tonnes.

Tower crane operators must carefully refer to load charts that indicate the reduction in lifting capacity based on factors like the horizontal distance of the load from the crane’s rotation point, boom angle, total weight of the load, and wind speed.

Tower cranes provide a stable lifting platform with high lift ranges, but their capacities are affected more by load weights, boom extensions, and weather conditions than other crane types. Understanding a tower crane’s load chart is crucial to ensure safe lifting well within the equipment’s rated lifting capacity and OSHA standards.

3. Boom Trucks – Up to 175 tonnes

Boom trucks, also called aerial lifts, are versatile cranes mounted on trucks commonly used on job sites for lifting heavy equipment and materials. Some boom truck models have large lifting capacities of up to 175 tonnes, depending on boom length, weight, lifting angle, and load radius.

The operator must completely understand the crane’s load chart to ensure safe operation within the rated capacity. Factors like ground conditions, load charts, total suspended load, and stability are crucial when using boom trucks to lift heavy loads and materials to construction sites.

Factors that Determine a Crane’s Exact Lifting Capacity

Several important factors determine the precise lifting capacity of a crane for each job. A thorough understanding of these variables is crucial for operators to lift loads safely within the equipment’s rated capacity.

1. Weight of the Load

The weight or load is one of the most significant determinants of a crane’s lifting capacity. The heavier the total load weight, the less the crane’s capacity, as indicated in load charts, which plot capacities against load weights.

Operators must accurately determine load weights, including rigging equipment, to ensure safe lifting within the crane’s maximum rated capacity.

2. Height of the Lift

Another critical factor is the height or lift range of the load. According to load charts, as cranes lift loads to higher vertical distances, their lifting capacities generally reduce.

This is due to physics principles and the increased stresses and forces exerted on crane components at higher lifts. Operators must carefully consider required lift heights and adjust load weights based on the crane’s chart.

3. Distance of the Load

According to load charts, the horizontal distance between the load and the crane’s base or rotation point, also called load radius, affects lifting capacity. As loads are positioned farther from the crane, their lifting capacities generally decrease due to physics principles and increased crane structure stresses.

Operators must factor in load radii accurately to determine safe lifted weights within the crane’s rated capacity.

4. The angle of the Boom

The angle of the crane boom, measured in degrees, also influences its lifting capacity. Steeper boom angles where the load is farther from the crane result in lower capacities, as indicated in the crane’s load chart, which plots capacities against boom angles. A proper understanding of load charts is essential to adjust load weights based on required boom positions safely and safely.

5. Load Chart Specifications

Load charts in crane operation manuals specify the crane’s lifting capacity, considering variables like load weights, radii, boom angles, and heights. They represent the crane manufacturer’s structural and stability analysis to indicate its rated lifting capacities under different load scenarios.

Operators must thoroughly comprehend load chart specifications and always refer to them for safe lifting operations within the crane’s configured capacity.
